CPU Heatspreader Lapping

Mike Schropp Computers 2 Comments

I’ve been busy as of late trying to optimize my current system for Grid computing. This means 24/7 operation at 100% CPU and GPU load. My system was previously overclocked and setup without any real purpose other than better productivity and daily usage. I had not really pushed it that hard and had a somewhat mild overclock.

With the recent change towards optimizing my setup for Grid Computing I decided to push my overclock a little harder. On top of that, I also plan on leaving my computer running 24/7. These two things mean I needed to re-evaluate my cooling setup to ensure that I would be able to keep my temps in check.

My current computer setup is a AMD x4 940BE processor with a XIGMATEK HDT-S1283 cooler. The case is an Antec 900 with the stock Antec fans swapped out and replaced with higher flowing Silverstone fans. My previously CPU overclock around 3.4Ghz. I never really tinkered too much with it much before. I have another rig that has a 4.0Ghz Intel C2D that was my primary overclocking toy.

I decided to push my AMD setup closer to 3.8 Ghz since I knew that would help a little with my points per day production for Grid Computing. This required a bit of a voltage bump and subsequently a little more heat. After loading up Prime95 and doing some stressing I found that my temps were running around 50-51c. Not bad, but something I thought I could improve upon. I decided the easiest way would be to lap the heat spreader on the CPU (which I’ve done in the past) and found it to be worth a couple of degrees.

Since I was going to be lapping the CPU heatspreader I figured I would take the opportunity to measure the surface finish as well before and after. The main purpose of lapping the CPU heatspreader is to make sure the surface is perfectly flat so that there is maximum contact with the CPU heatsink base. More contact equals better heat transfer. The surface finish is a secondary thing, and while I don’t believe it has anywhere near as much impact as the flatness, I do think there is some value in the finish. Using a profilometer I was able to measure the RA finish of the CPU heatspreader before and after lapping.

Starting with 600 grit sandpaper and working in steps (800 grit, 1200 grit, 1600 grit) and the finishing it off with a light touch of 2000 grit yielded some pretty good results. During the lapping process I found that the stock CPU heatspreader was not all that flat. While the stock CPU heatspreader looks flat to the naked eye, it’s pretty obvious after you start lapping that it is not.

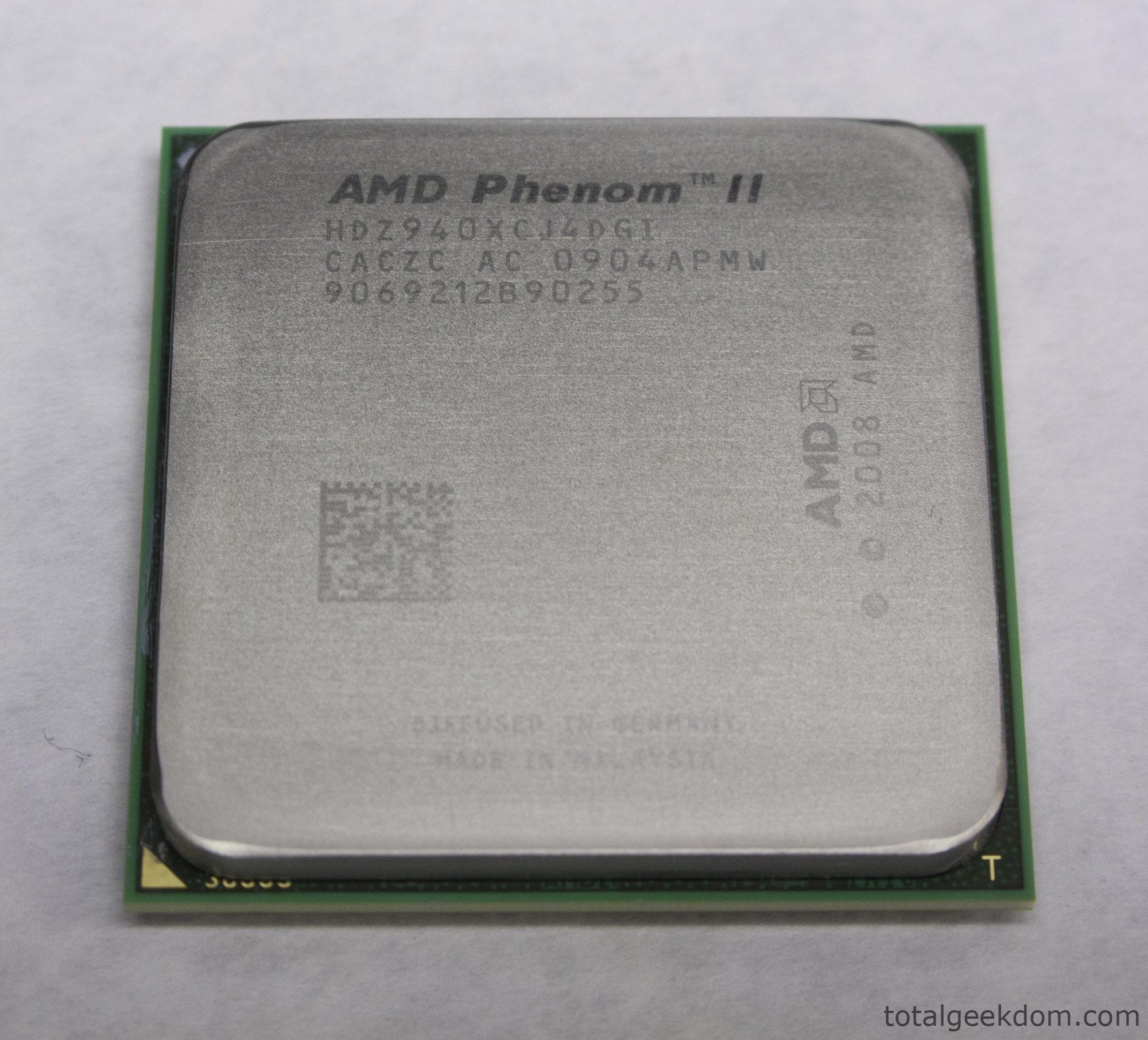

Stock CPU-

AMD Phenom II CPU Heatspreader

CPU Stock

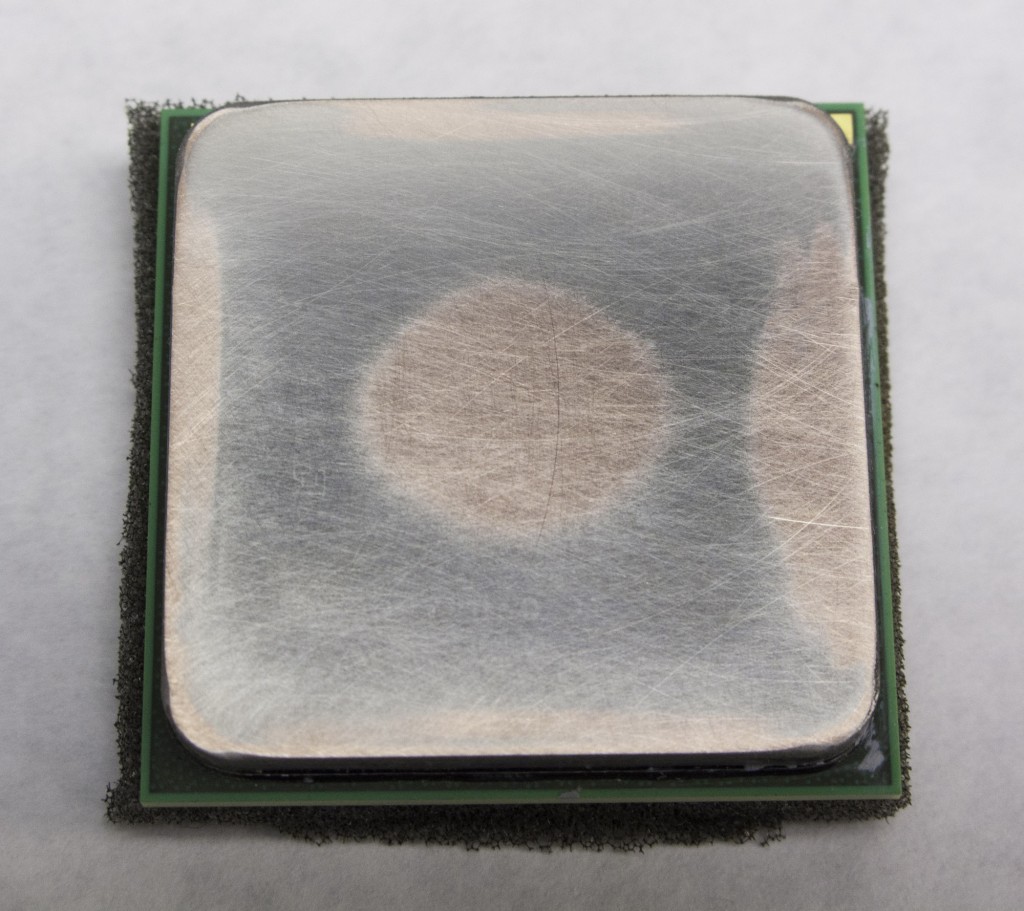

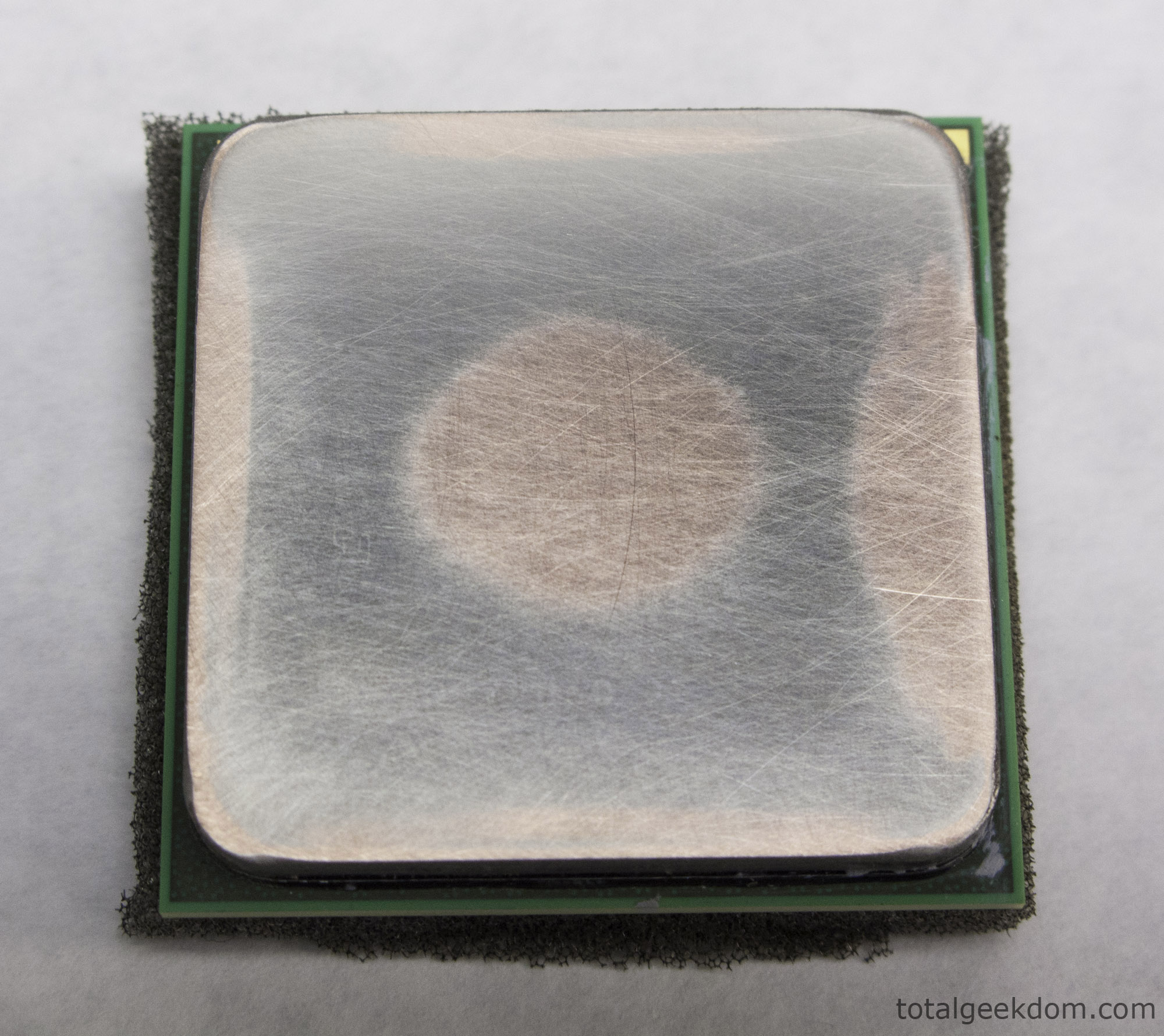

After lapping for a couple of minutes here is what you end up with.

Processor Heatspreader Lapping

CPU Heatspreader Initial Sanding

Here are my surface finish measurements before and after lapping. (RA finish in inches)

Stock12 RA
Fully Lapped3.1 RA

Again, I’m not sure how much the RA finish comes into play but as you can see the improvements are pretty good from lapping.

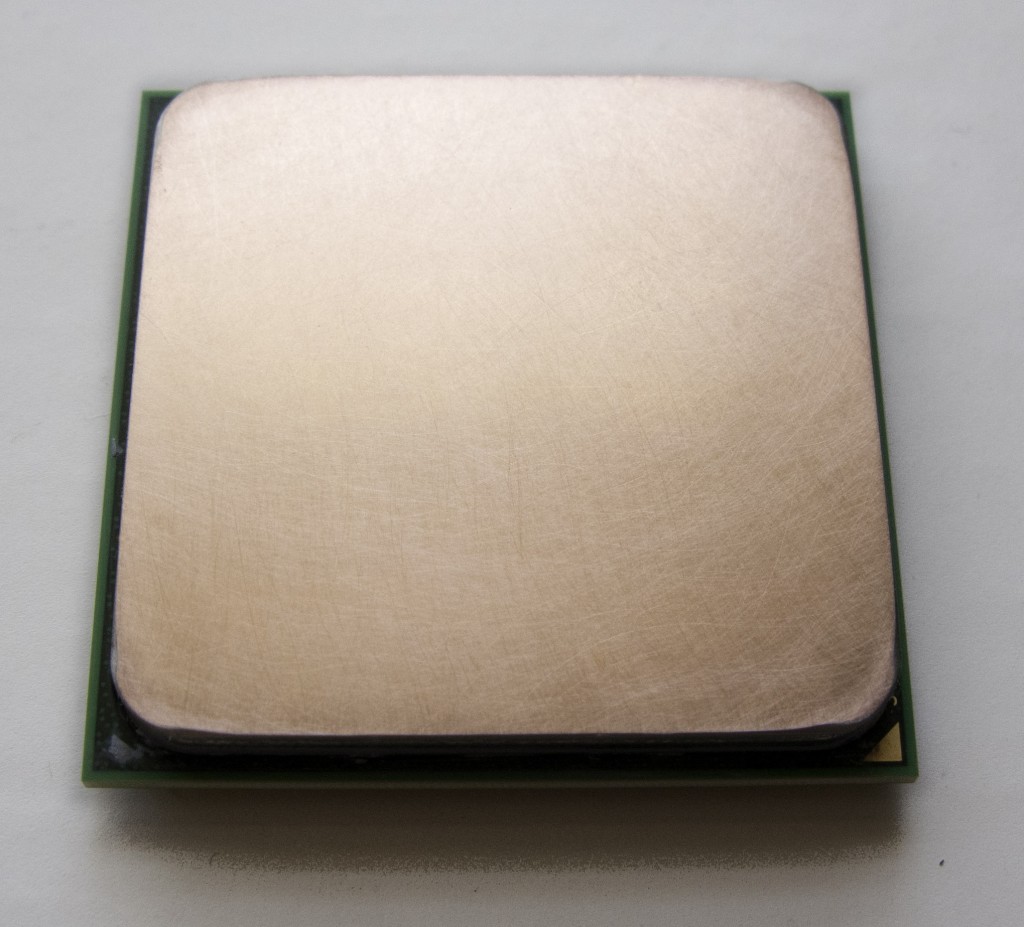

Finished CPU after lapping-

Lapped Processor Heatspreader

Finished CPU Heatspreader

Now for the numbers that matter most; the temps. Here are the results of my 6 hour stress tests using Prime95 and maxing all 4 cores out at 100%.

Stock CPU51.3c (Peak Temp)
Lapped CPU47.2c (Peak Temp)
Difference4.1c

All in all the lapping process returned some excellent results. I managed to drop my temps another 4c.  The temps I had before were not that bad but they were a little high for my liking. Being able to reduce my temps further makes me feel better about operating my computer 24/7. Plus I was able to up my overclock another 400Mhz on top of that .
